Replace Old Channels Perfectly with OEM or Aftermarket
Seal out the weatherEliminate window rattles
Shown Left - CCOT's NEW!
Chrome beaded Channel
Fits FJ40 - '75 to '84
A CCOT Exclusive Product
Click Photo to Enlarge
FJ40 Channel for all years
Installation Instructions
Caution: Excessive force on window crank could damage window regulator. Be easy on crank (don't break crank / regulator when seating channel) and add WD40 or spread channel more to allow window to close.
Window Channel - Soft - 3 Pc - '58 - '74
Click Photo to Enlarge
3 Piece Channel Set does 1 Door

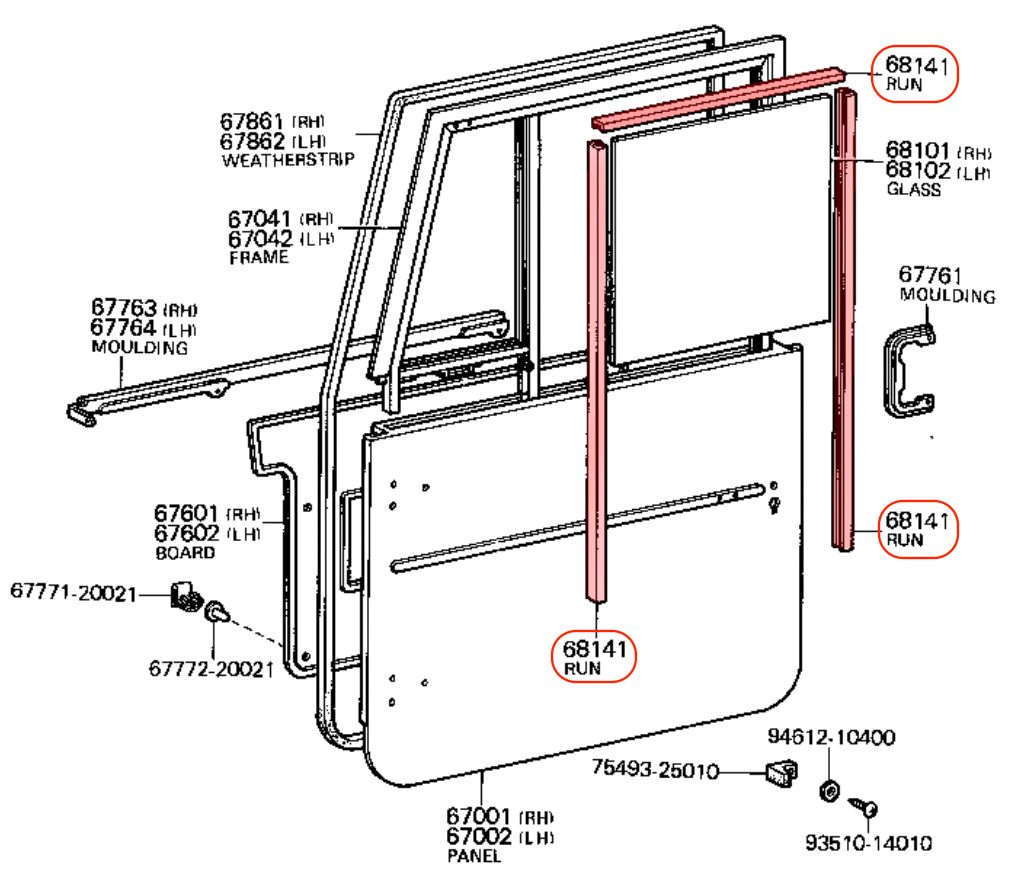

Soft - Window Channel - for same application as OEM 6841 RUN - See Drawing
Install Cross Channel first, then Side Channels.
Not "Handed" channel fits right or left front doors
Note: System will add $48.99 to base price for 2nd Window Channel.
$52.01
Cross Section
Window Channel
Note: System will add $42.00 to base price for 2nd Window Channel.
$45.34
Cross Section
Window Channel Black Flex Bead '75-'84
A CCOT Exclusive Part
Flexible Chrome Beaded Window Channels
Fits - FJ40 - 1/'75 to '84
Channels are appx 70" straight lengths and you have to bend to install in window frame. Best if done by professional shop.
Channel flexes to form into corners of window frame
These channels are offered nowhere else but at CCOT
Installed chrome beaded channels look like OEM
Not "Handed" channel fits right or left front doors
Might need to trim down and also start installation from front of door
See installation instructions below
Note: System will add $52.50 to base price for 2nd Window Channel.
Flexible Chrome Beaded Window Channels
Fits - FJ40 - 1/'75 to '84
Channels are appx 70" straight lengths and you have to bend to install in window frame. Best if done by professional shop.
Channel flexes to form into corners of window frame
These channels are offered nowhere else but at CCOT
Installed chrome beaded channels look like OEM
Not "Handed" channel fits right or left front doors
Might need to trim down and also start installation from front of door
See installation instructions below
 |
Note: System will add $52.50 to base price for 2nd Window Channel.
$55.59
$153.17
$126.80
$49.38
Installation Instructions - Aft Mrkt - '75 to '84
"A", Feed both ends of window channel (equal lengths ~ this will center channel) into door window grove while sliding and aligning window channel over window glass edges.
"B", Slightly pinch window channel to fit / insert into window grove. We use flat bill Vice-Grips to pinch channel.
"C", Once window channel is installed into window groove, then spread with wide / blunt screw driver to expand window channel to hold in place.
Installation Details: First remove your old window channel. [Note: Do not remove smaller felt shaped "U" channel that is located just below the resting point (deep inside door) of the forward channel.] New window channel should be installed at room temperature (warm, not cold to be flexible). To install new channel into window frame grove, first slightly crimp / pinch width of channel so that it will insert into window frame grove. Window Channel is made slightly wider to hold in place once installed into window grove.] Once window channel is inserted into grove, then spread out (widen, with large blunt screw driver) channel so that it will hold in window frame grove. Finally, spray a light coat of WD40 into new channel to lubricate channel / glass when window is first rolled up to help seat channel.
Caution: Excessive force on window crank could damage window regulator. Be easy on crank (don't break crank / regulator when seating channel) and add WD40 or spread channel more to allow window to close.
"B", Slightly pinch window channel to fit / insert into window grove. We use flat bill Vice-Grips to pinch channel.
"C", Once window channel is installed into window groove, then spread with wide / blunt screw driver to expand window channel to hold in place.
Installation Details: First remove your old window channel. [Note: Do not remove smaller felt shaped "U" channel that is located just below the resting point (deep inside door) of the forward channel.] New window channel should be installed at room temperature (warm, not cold to be flexible). To install new channel into window frame grove, first slightly crimp / pinch width of channel so that it will insert into window frame grove. Window Channel is made slightly wider to hold in place once installed into window grove.] Once window channel is inserted into grove, then spread out (widen, with large blunt screw driver) channel so that it will hold in window frame grove. Finally, spray a light coat of WD40 into new channel to lubricate channel / glass when window is first rolled up to help seat channel.
Caution: Excessive force on window crank could damage window regulator. Be easy on crank (don't break crank / regulator when seating channel) and add WD40 or spread channel more to allow window to close.
