Lift Kit - Springs - HFS™
Lift Kit - FJ40 HFS™ - Designer Lift Kit - 1961-7/80
Lift Kit Includes:
(24) Bushings HFS Poly - 24ea - 40 Series
(2ea) CCOT-HFS40F Front Leaf Springs - # ON FRONT SPRINGS HFS40FP
(2ea) CCOT-HFS40R Rear Leaf Springs - Right Rear Spring w/Leveler Block # ON REAR DRIVER SPRING HFS40R AND ON REAR PASSENGER SPRING HFS40RPT
(8ea) U-Bolts - Yellow Zinc w/Nuts & Washers, Front & Rear Axles
(4ea) HFS™ Barbell Shackles
(8ea) Greasable Shackle Bolts
These ship oversize because of springs - you will receive shipping quote by separate email to approveNEW ! and In the Kit !!!...CCOT Exclusive - HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty HFS leaf springs that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface. See "Toyota Trails" Article featuring CCOT's HFS™ Lift.

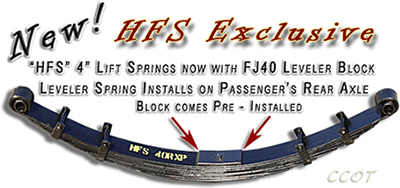

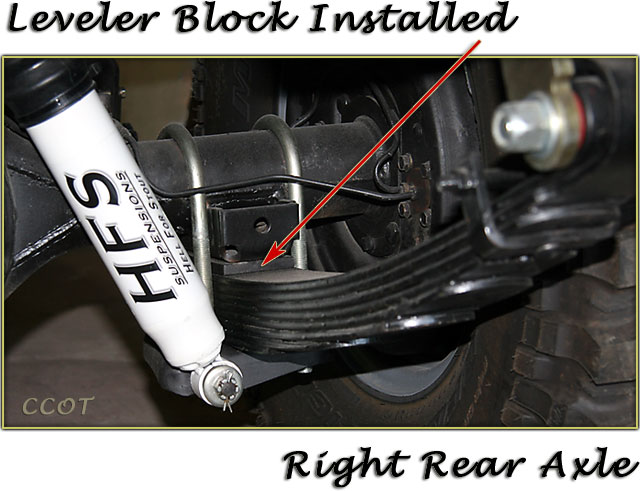

Note: The "HFS™ Leveler Block" included in this kit, cures the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the right side rear spring stack. The "Leveler Block" is an exclusive CCOT product.
Mount Front Springs with long side away from axle toward the front of the vehicle.
Mount Rear Springs with long side away from axle toward the rear of the vehicle and Leveler block spring on right rear side.
HFS Springs are "Lift Springs" not "Overload Springs".
https://www.coolcruisers.com/likitfjhfdel.html
$1,721.00
Lift Kit - FJ40 HFS™ - Designer Lift Kit - 1961-7/80
Product Description
The "HFS™ Designer Lift" Gives the Customer individual control of their desired lift height.
The final lift height is controlled by the shackles that Customers choose.
If Customer chooses the 1½" HFS™ "Barbell Shackle", then their lift height (over stock) will be approximately 3¼"
If Customer chooses the 2½" HFS™ Barbell Shackle", then their lift height (over stock) will be approximately 3¾"
HFS Superior Spring Design Features.
Lift Kit Includes:
(24) Bushings HFS Poly - 24ea - 40 Series
(2ea) CCOT-HFS40F Front Leaf Springs - # ON FRONT SPRINGS HFS40FP
(2ea) CCOT-HFS40R Rear Leaf Springs - Right Rear Spring w/Leveler Block # ON REAR DRIVER SPRING HFS40R AND ON REAR PASSENGER SPRING HFS40RPT
(8ea) U-Bolts - Yellow Zinc w/Nuts & Washers, Front & Rear Axles
(4ea) HFS™ Barbell Shackles
(8ea) Greasable Shackle Bolts
These ship oversize because of springs - you will receive shipping quote by separate email to approve
NEW ! and In the Kit !!!...CCOT Exclusive - HFS polyurethane spring bushings that are engineered for heavy off-road use, control, long life and comfort. You will feel the difference in positive handling and control of the new HFS Poly bushing. HFS Poly bushings have a shore A durometer rating of 80 and tensile strength near 5000psi. The typical durometer measurement will vary between 65 (soft) and 88 (hard). The typical bushing tensile strength measurement should not be lower than 2500 psi. Suspension engineers concocted the proprietary HFS urethane formula to work in combinations with heavy duty HFS leaf springs that require more wheel articulation / travel and comfort for street use. HFS polyurethane spring bushings have grease grooves to uniformly distribute grease across the entire inner bushing surface.
See "Toyota Trails" Article featuring CCOT's HFS™ Lift.

Note: The "HFS™ Leveler Block" included in this kit, cures the Driver's Side Lean of most FJ40s. CCOT designed and extensively tested our HFS Leveler Block FORMULA on many FJ40s. We found that our HFS Leveler Block cured the lean on all test vehicles. Block is pre-installed on top of the right side rear spring stack. The "Leveler Block" is an exclusive CCOT product.
Mount Front Springs with long side away from axle toward the front of the vehicle.
Mount Rear Springs with long side away from axle toward the rear of the vehicle and Leveler block spring on right rear side.
HFS Springs are "Lift Springs" not "Overload Springs".
